DD-100-OO Type OO Durometer
Price: $ 1,074.00
Digital Precision Durometer
Available Scales: A, B, C, D, DO, O, OO
Can be used in any measurement orientation as gravity does not affect readings
Digital Precision Durometer |
Available Scales: A, B, C, D, DO, O, OO
Conforms to: ASTM D-2240, DIN 53505, ISO 868 & ISO 7619
The new DD-100 digital durometer is the genesis of years of experience offering high quality Durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the DD-100 is the ideal durometer for a wide range of shore hardness measuring applications.  The DD-100 is supplied with a NIST traceable calibration certificate in foam-fitted carrying case.
 Easy To Operate
|
Features of the DD-100 Digital Shore Durometer  Can be used in any measurement orientation as gravity does not affect readings | High and low buttons for setting tolerance limits | 18 mm diameter footer provides stable basis for testing and conforms to all International Standards | Solid state circuitry with LCD display | One year warranty |
| |

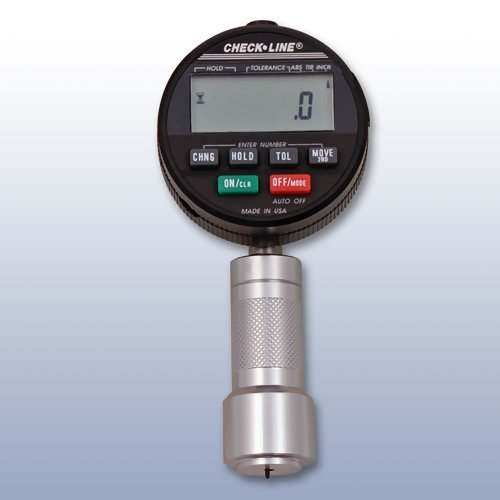

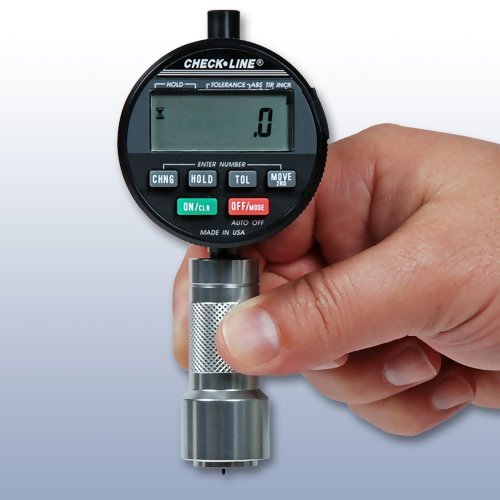

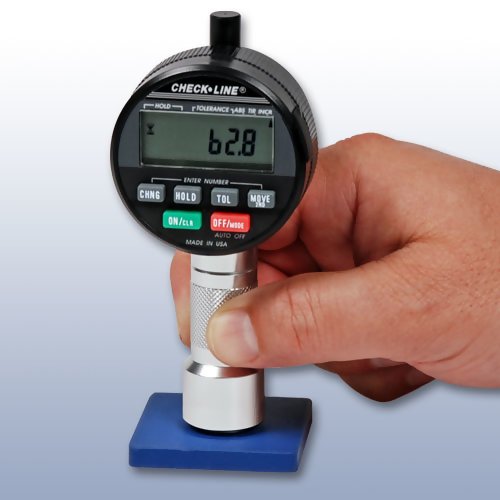

Photo Gallery for the DD-100 Digital Shore Durometer- click any photo to enlarge Related Products for the DD-100 Digital Shore Durometer AD-100
Precision Durometer
| | Includes NIST-Traceable Calibration Certificate Conforms to ASTM D-2240, DIN 53505, ISO 868 and ISO 7619 18 mm diameter footer provides stable basis for testing and conforms to all International Standards | | _ |
Durometer Test Block Kits
Test Function Of Durometers
| | Enables user to perform a quick check for proper durometer operation |
 We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands. |
Dimensions of the DD-100 Digital Shore Durometer  Complete Kit of the DD-100 Digital Shore Durometer The DD-100 is supplied as a complete kit including the durometer, instruction manual and calibration certificate in a foam-fitted metal carrying case. | |
Downloads for the DD-100 Digital Shore Durometer Specifications of the DD-100 Digital Shore Durometer Resolution | 0.1 Units | LCD Size | 8 mm | Dimensions | 128 x 57 x 36 mm | Weight | 235 grams (8.4 oz.) | Power Supply | (2) 3V CR-2450 Batteries
AC Adapter Optional | Warranty | 1 year | * Note | per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted. |
Conformance to International Standards | Model | ASTM D2240 | DIN 53505 | ISO 868 | ISO 7619 | DD-100-A | X | X | X | X | DD-100-B | X | | | | DD-100-C | X | | | | DD-100-D | X | X | X | X | DD-100-DO | X | | | | DD-100-O | X | | | | DD-100-OO | X | | | |
|
|
|
|
|
|
