RX-2000-DO Type DO Max-Hand Shore Durometer



Price: $ 570.00

RX-2000 Max-Hand Shore Durometer
Max-Hand Shore Durometer
Available Types:
A, D, B, C, DO, E, and O
Conforms to ASTM D-2240
Includes NIST Calibration Certificate

The RX-2000 durometer is the latest innovation for the testing of specimens with creep. The RX-2000 has a max- hand and an active hand for observing the creep characteristics of a specimen. What makes the RX-2000 unique is the magnetic-drag maximum reset mechanism. The user simply rotates the reset knob on the front of the gauge to clear the previous reading. The simplicity of the reset mechanism ensures a lifetime of use, and makes the RX-2000 the most affordable durometer for testing specimens with creep.

line
Features
line

  • Includes NIST-Traceable Calibration Certificate
  • Custom Made Carrying Case
  • Reads Maximum and Creep
  • One Year Warranty
  • Conforms to ASTM D-2240
  • Holds Reading Until Reset
  • Cost Effective, Hand Operated

line

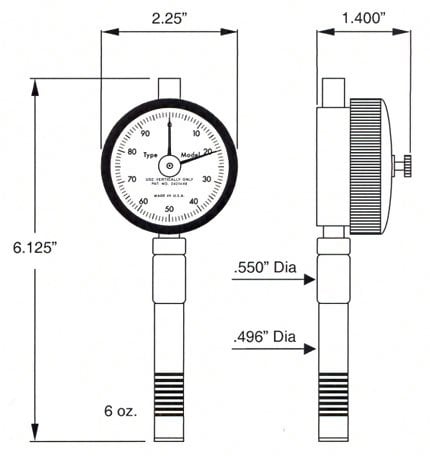

Dimensions
line

ABQ

line
Complete Kit
line

The RX-2000 is supplied as a complete kit including the durometer & instruction manual in a foam-fitted metal carrying case.

complete kit

line
Test Stands
line

We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment.

durometer test stands

line
Specifications
line

Measuring Range0 - 100 units
Accuracy1 durometer unit (A,B,C,D,E,O,DO)
Dimensions2.25" x 6.125"H
Weight6 oz.
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.


line
Related Products
line

Durometer Test Block Kits
Test Function Of Durometers

  • Enables user to perform a quick check for proper durometer operation
related

line

ORF-1
O-Ring Fixturing Set

  • Measures O-Rings 1/16" to 1/4"
  • 5 standard English sized fixtures and set plug included
related

line

RX-BF
"Big Foot" Durometer Foot Adapter

  • The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter
related

line

RX-CLW
Constant Load Weight for Types A, B, O, OO & OOO

  • The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg
related

line
Buy Now
line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
RX-2000-DO Type DO Max-Hand Shore Durometer $570.00
Accessories Price
TBKC-A Shore A Durometer Test Block Kit $275.00
TBKC-D Shore D Durometer Test Block Kit $200.00
RSS Removable Stainless Steel Barrel for Medical and Food Applications $200.00
