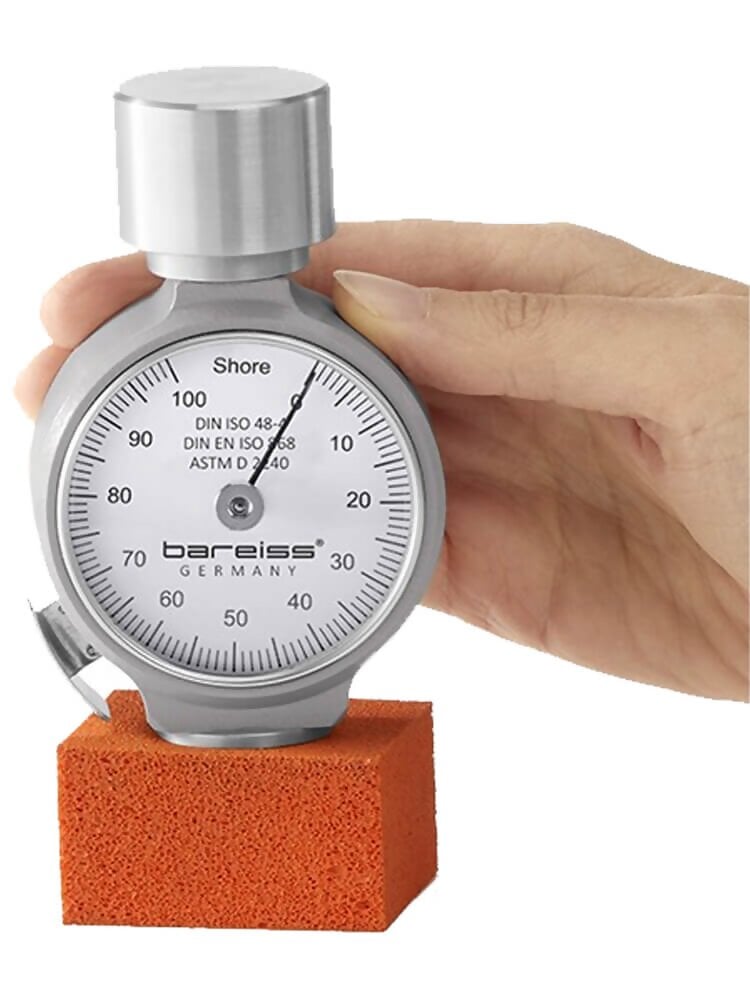

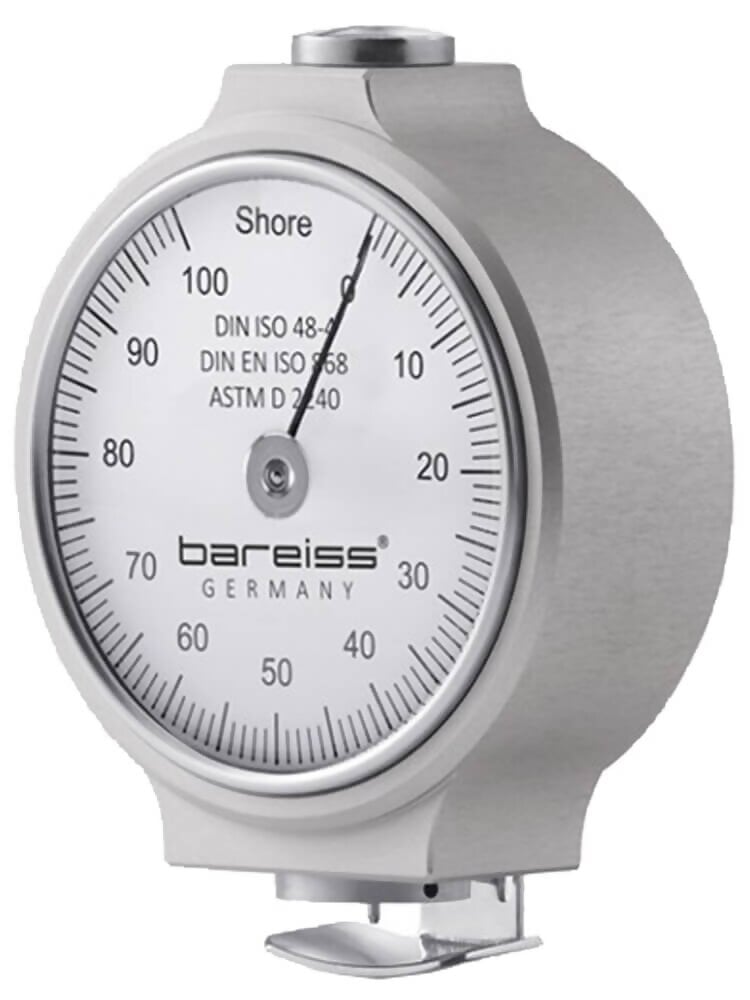

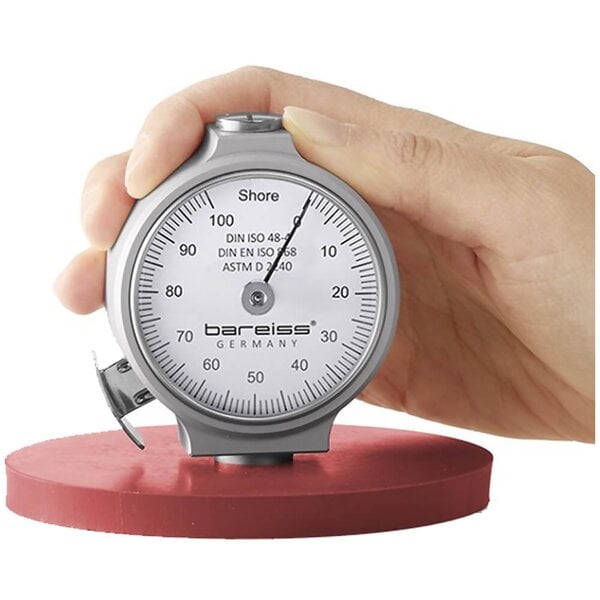

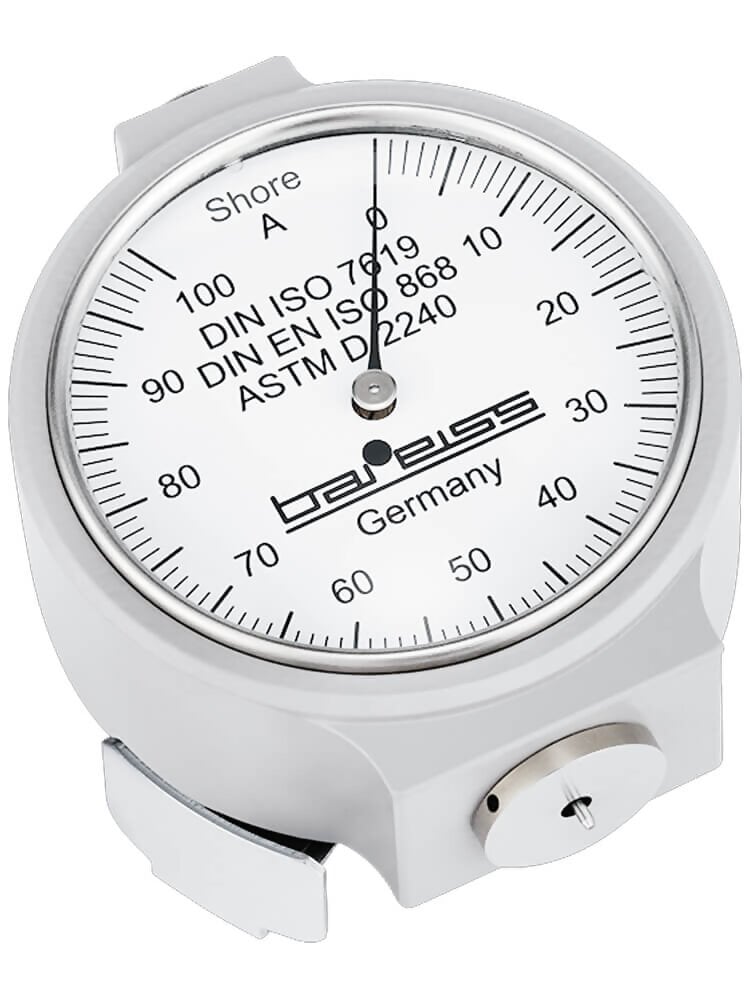

Bareiss HP-A Shore A Durometer for Soft rubber, plastics and elastomers, 18 mm Footer - fm00077
Similar Products to Consider
Available Scales:A, D, O, B C, DO, AO, E, OO, OOO, OOOS, E & Asker C
Bareiss HP Durometers measure hardness according to ASTM and ISO standards. Every HP is carefully assembled and calibrated by Bareiss technicians. To reduce friction, all Durometers include precision ball bearings to ensure smooth traveling of the indentor eliminating errors caused by friction. The Bareiss HP Series is available in different Shore and non-Shore scales.

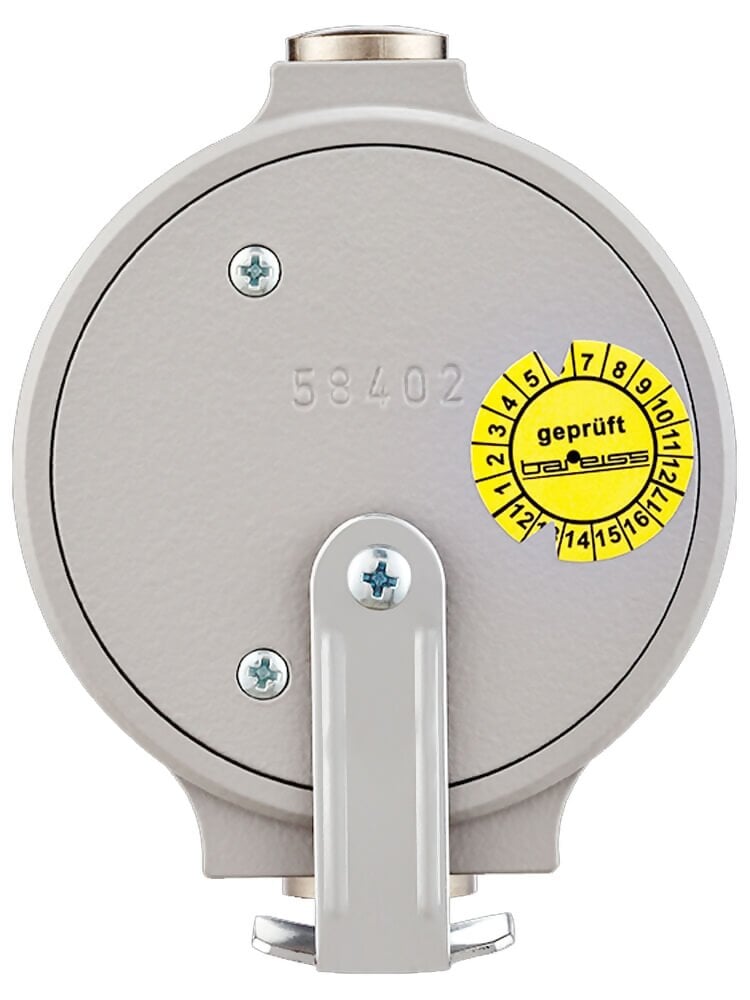

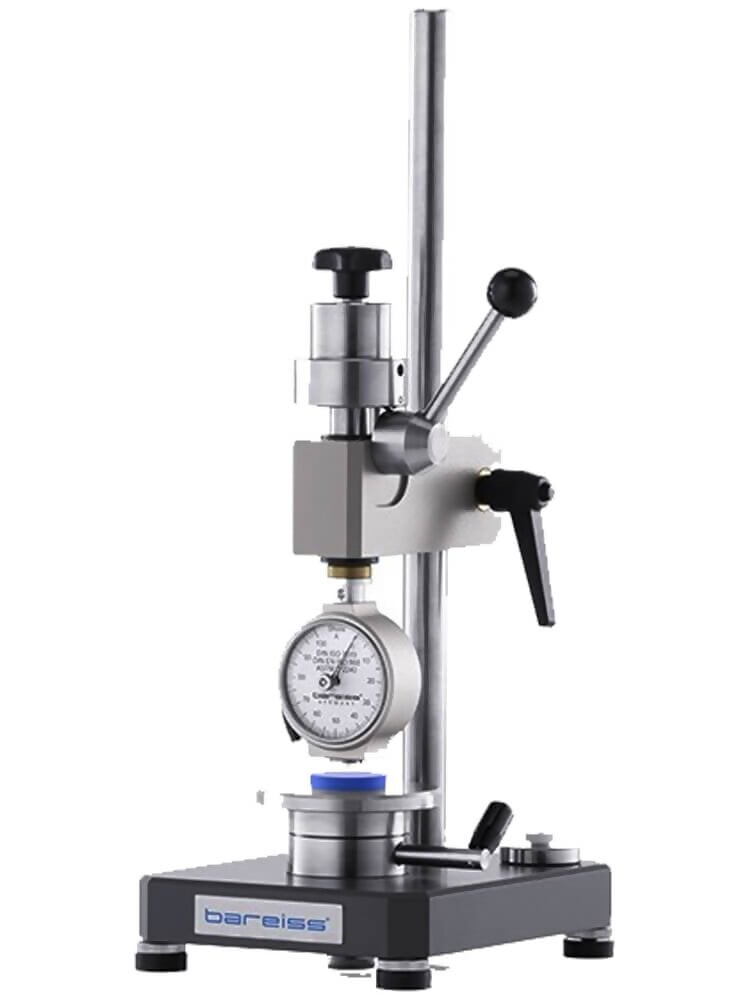

They are fabricated using cast aluminum housings providing the durability required for use in tough production environments. Options include a Memory Pointer to retain the Peak Value during measurement. For measurement of round samples or on small parts or on a radius, it can be used with the BS61 Test Stand to increase repeatability and minimize operator variability.
Ideally suited for hardness measurement of all natural and synthetic rubber products, plastics, acrylic glass, acetates, thermoplastics, PVC, neoprenes, hardboards, wood, leather, and fruits utilizing Shore A, A0, B, 0, C, D, D0, 00, 000, 000S, E, and Asker C scales.
Please note that the number "0" is used in the part number instead of the letter "O", however, they are identical.
For example an HP-D0 = HP-DO
Features
- NIST-Traceable Calibration Certificate is optional
- Conforms to DIN ISO 7619, DIN EN ISO 868, NF T 51-174, ASTM D 2240, BS 903 Part. A 26
- Can be used in any measurement orientation as gravity does not affect readings
- Optional Memory Pointer ("S" versions) holds highest reading (not available on OO and OOO models)
- Slide-on/off metal protection plate covers the indentor and protects it from damage when not in use (not on 00 and 000)
- 1-Year Warranty
Specifications
| Measuring Range | 0 - 100 units |
| Accuracy* | 1 durometer unit (A,B,C,D,O,DO & Asker C) 2 durometer units (OO) |
| Dial Size | 50 mm Diameter |
| Dimensions | 128 x 57 x30 mm |
| Weight | 200 grams (7 ounces) |
| Warranty | 1 year |
| * Note | per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted. |
| Conforms to | ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312. |
| Mounting Thread | 5/16-40 |
| Tolerance | 0.5 at "100" and -0 +1 at "0" |
Models
| Scale | Load | Spring Force | Foot Size | Indentor Travel | Min Sample Thickness | Indentor Shape |
| A | 1 Kg | 8.050 N | 18 mm | 2.5 mm | 4 mm (DIN EN ISO 868) 6 mm (all other standards) |  |
| D | 5 Kg | 44.45 N | 18 mm | 2.5 mm | 4 mm (DIN EN ISO 868) 6 mm (all other standards) |  |
| 0 | 1 Kg | 8.050 N | >500 mm2 | 2.5 mm | 6 mm (all standards) |  |
| B | 1 Kg | 8.050 N | 18 mm | 2.5 mm | 6 mm (all standards) | |
| C | 5 Kg | 44.45 N | 18 mm | 2.5 mm | 6 mm (all standards) | |
| D0 | 5 Kg | 44.45 N | >500 mm2 | 2.5 mm | 6 mm (all standards) | |
| A0 | 1 Kg | 8.050 N | >500 mm2 | 2.5 mm | 6 mm (all standards) |  |
| E | 1 Kg | 8.050 N | >500 mm2 | 2.5 mm | 6 mm (all standards) | |
| 00 | 400 g | 1.111 N | >500 mm2 | 2.5 mm | 6 mm (all standards) | |
| 000 | 400 g | 1.111 N | >500 mm2 | 2.5 mm | 6 mm (all standards) |  |
| 000S | 400 g | 1.932 N | >500 mm2 | 5.0 mm | 6 mm (all standards) |  |
