Conforms to: ISO 7267-3, ASTM D 531
Conforms to:ISO 7267-3, ASTM D 531

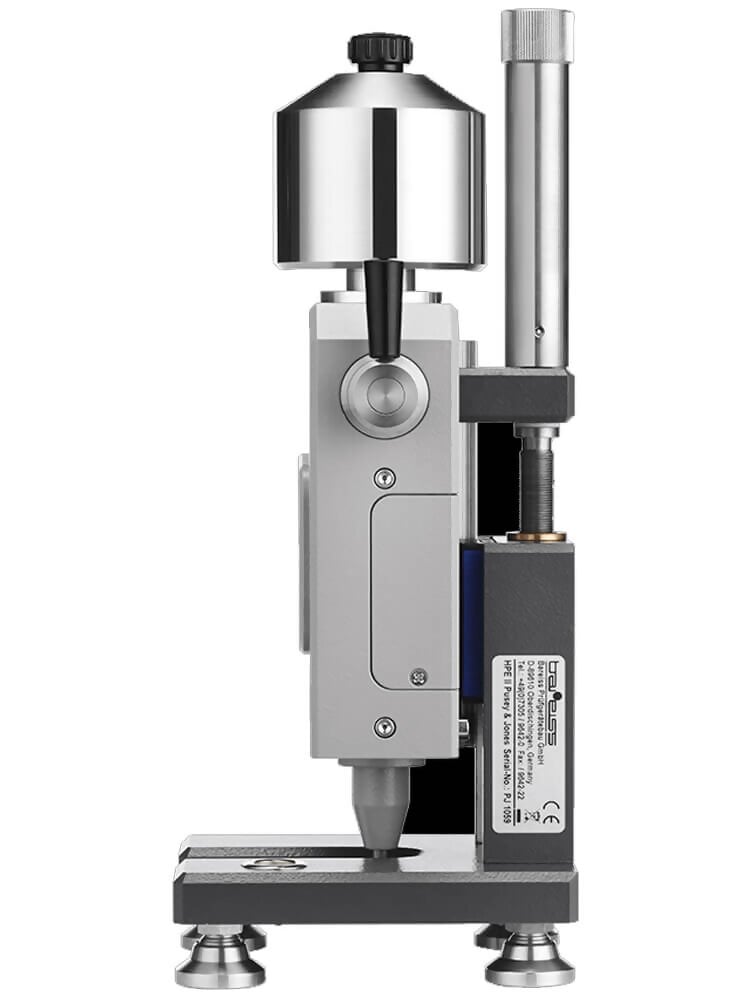

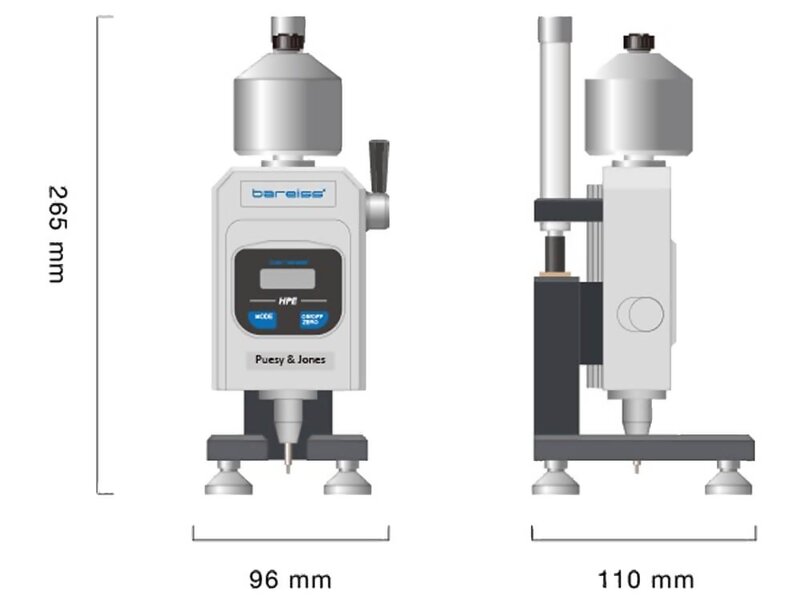

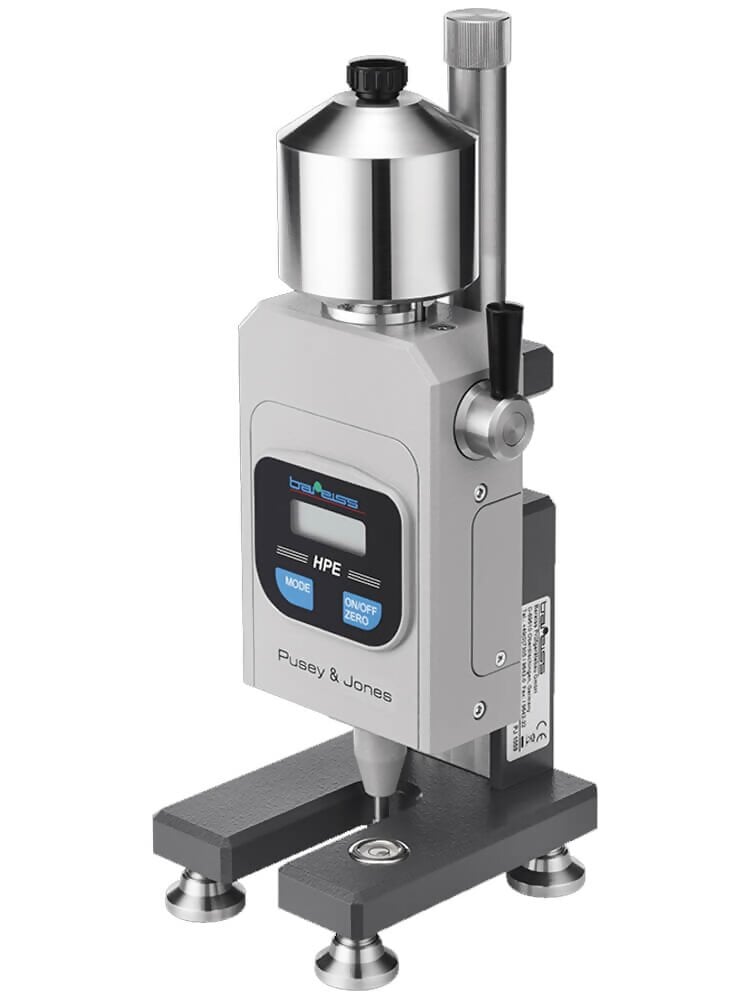

The Bareiss HPE-PJ Pusey & Jones Hardness Durometer Tester Plastometer is designed for testing the hardness of rubber and rubber-like materials. It is typically used for testing rubber rollers used by the paper industry. It can also be used for testing specimens with a flat surface and thickness of 13 mm.
The digital display indicates the penetration depth in mm units with 0.01 mm resolution. A specialized load weight ensures a total force of 9.8 N is applied. A built-in timer displays the measurement automatically after 60 seconds.
Features
- Built-In Timer for Precise and Repeatable Measurement
- 1kg load weight
- RS232 Output for Connection to Optional HardTest Software
